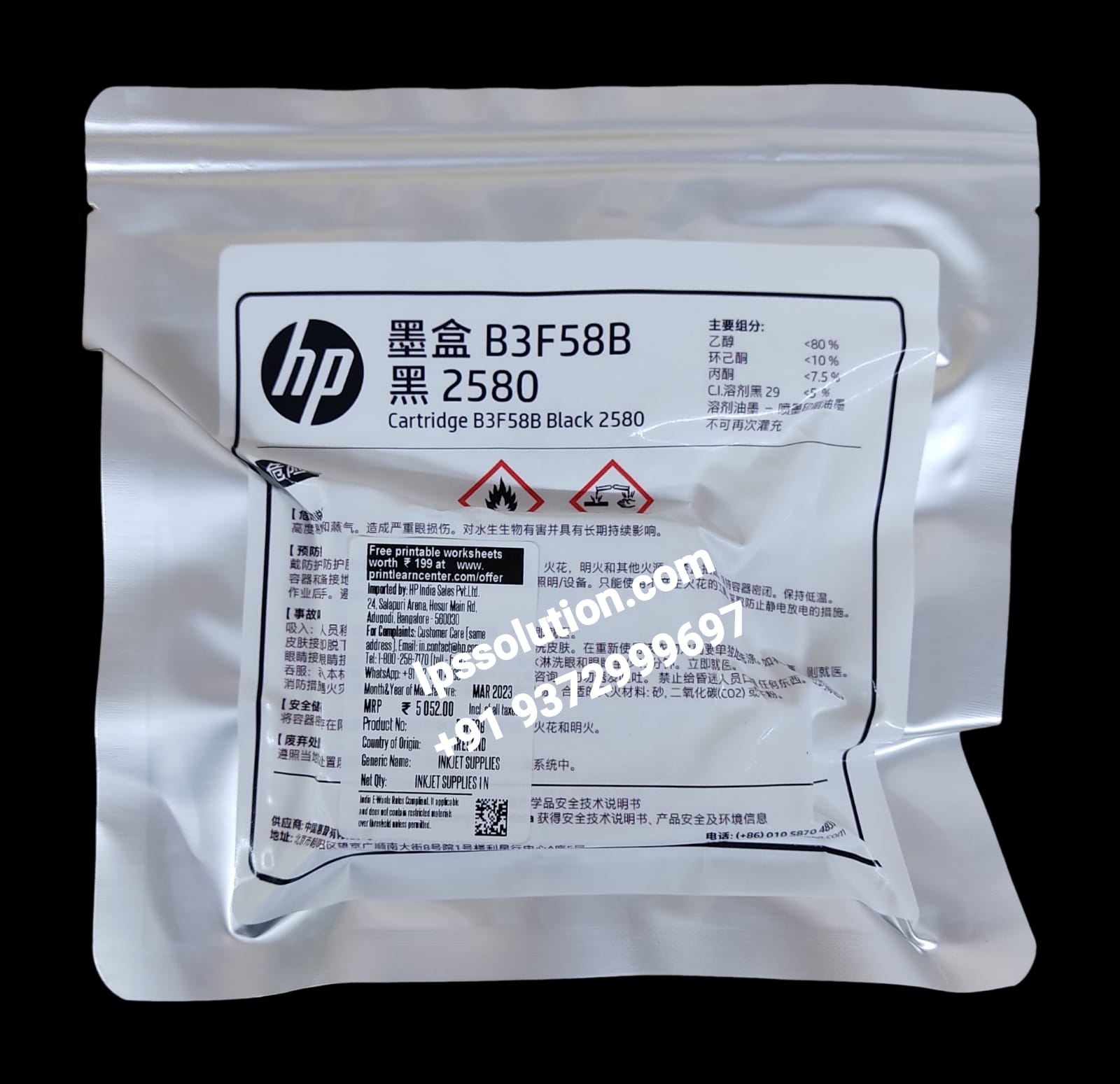

HP 2580 Black Solvent Smart Card Print Cartridge

• Ink type – Original HP solvent ink
• Print cartridge type – HP 45si Print Cartridge optimized for non-porous printing with built-in intelligence
• Resolution- Up to 600 dpi (recommended 300 x 300 dpi)
• Nozzle count- 300
• Print swath- 12.7 mm (0.5 in)
• Throw distance- Up to 5 mm
• Firing voltage- 8.7 V
• Fire pulse width- 1.8 microseconds
• Pulse warming- Off
• Average drop volume- B3F58B: 38 pl
• Ink fill level- B3F58B: 47 ml
• Number of electrical interconnect pads- 52 + 4 (printhead + Smart card)
• Operating conditions- 15 to 35° C / 59 to 95° F, 35 to 80% RH
• Print cartridge servicing- Use lint-free wipe that is either dry or wetted with ethanol or isopropyl alcohol (IPA)
• Shipping/storage conditions-  -20 to 35° C / -4 to 95° F, 20 to 80% RH (if product is below 10° C, a 6-hour warm-up within the operating temperature is required prior to use) Altitude: 0 to 5000 meters (0 to 16,404 feet) Orientation: nozzles up or side

Key highlights

• Excellent durability on coated blister foils

• Long decap time (24 hours) ideal for intermittent printing • Fast dry time without heat assistance

• High print definition

• Smear, fade, and water resistant

• Faster print speeds

• Longer throw distance Try HP 2580 solvent ink on:

• Coated substrates like nitrocellulose and acrylic-coated blister foils

• Semi-porous and flexible film substrates

 Start producing package product coding and marking where longer throw distances and faster speeds are required. HP 2580 solvent ink, combined with HP’s improved HP 45si Print Cartridge, lets you print quicker and jet farther. HP 2580 ink also delivers long decap and fast dry times to achieve high-productivity intermittent printing for industrial coding applications.

 Designed for track-and-trace coding and marking

 For package production facilities using coated foil substrates, HP 2580 solvent ink provides durable coding and marking and delivers fast dry time without heat assistance. Boost production efficiency and handling—quickly print and stack smear-resistant1 coded products.

 Food and pharma packaging regulatory compliance

 HP 2580 solvent ink in the B3F58A cartridge can be used to print product identification text and bar codes on the non-food contact surface of food packaging, in compliance with applicable regulations and commonly referenced industry standards in the EU, US, and other countries and regions, under specified conditions of use. For many pharmaceutical printing applications, compliance with food contact materials regulations may be sufficient.

 Maintain high productivity

 HP 2580 solvent ink offers long decap up to 24 hours enabling production efficiency—you can stop and restart your production line without maintaining the print cartridge

 Produce consistent, high-resolution print quality

 See outstanding print definition, optical density, and contrast—well suited for 1D and 2D barcode readability required in many food and pharmaceutical applications.

 Jet farther and achieve higher throughput speeds

Formulated especially for coated foil substrates, HP 2580 solvent ink enables longer throw distances, up to 5 mm, and faster speeds, up to 76.2 meters (250 feet) per minute—both of which increase package coding and marking production flexibility.
